TDS^®

As a leading intelligent dry sorting solution for lump coal, MeiTeng TDS^® combines X-ray sensing, imaging recongition, AI algorithms, and precision air-jet technology to deliver efficient, water-free coal beneficiation with exceptional reliability.

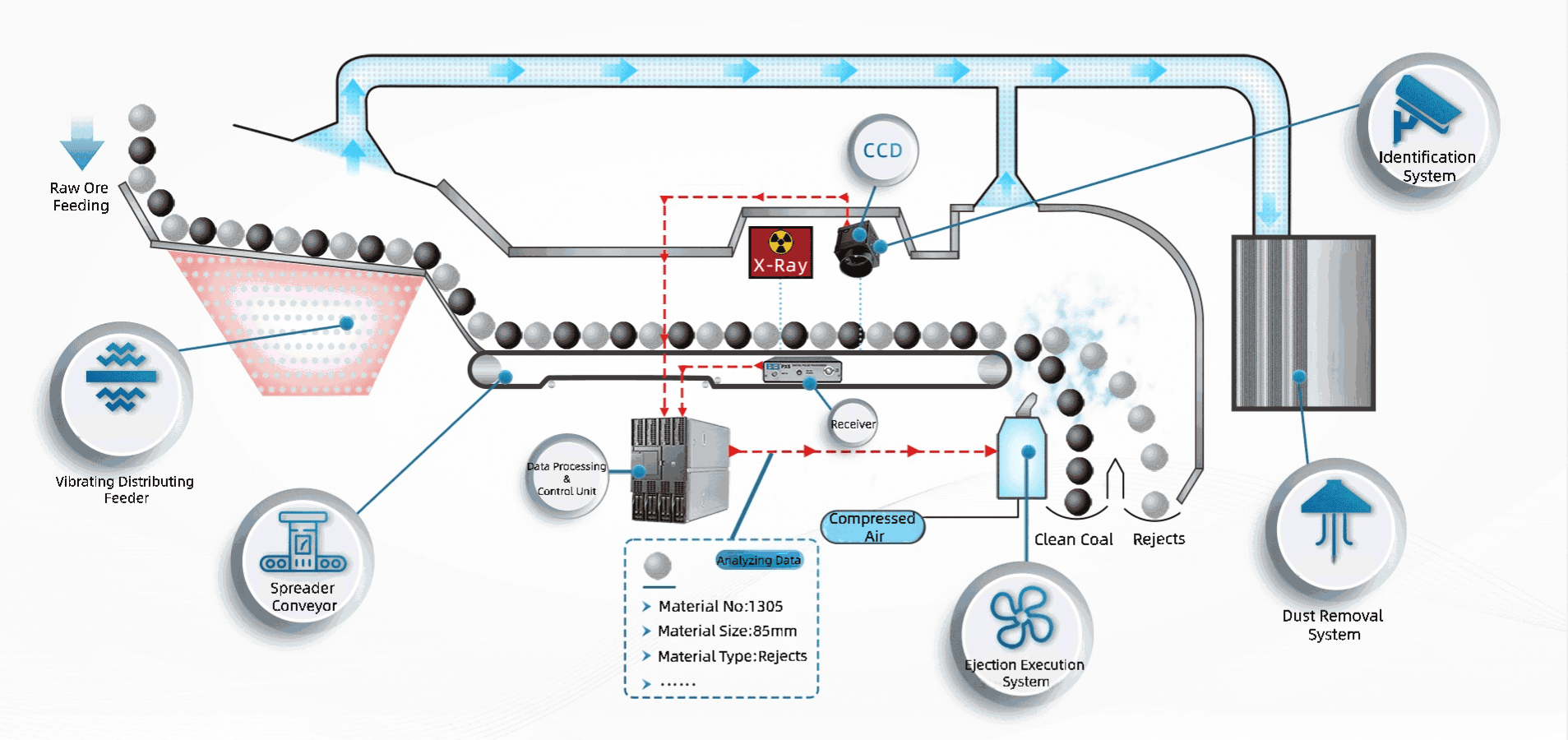

How It Works

The MeiTeng TDS^® Intelligent Dry Sortors been launched in 2015, which is based on X-ray and image recognition.The TDS^® system operates through a precise and fully integrated process that combines stable feeding, high-resolution detection, and intelligent sorting execution,as well as the auxiliary system.

1. Feeding and Material Stabilization

Raw coal is fed by a vibrating feeder and spread as a thin, even layer onto a fast-moving conveyor belt. This stable material flow ensures that each particle is clearly exposed and ready for qualitative analysis, providing a condition for accurate sorting.

2. Identification and Analysis

As material passes through the detection area, it is scanned by an X-ray transmission system and CCD imaging. Each particle’s density, composition, and thickness are captured in real time. MeiTeng proprietary big-data algorithms then classify clean coal and waste by generating an intelligent recognition model, ensuring high sorting accuracy.

3. Intelligent Sorting Execution

Analysis results are transmitted to the compress-air execution system. Using precise, energy-efficient solenoid valves, the system can reject waste from valuable clean coal and middlings. Upon operational needs, TDS^® can perform de-stoning, achieve three-stage sorting (clean coal, middlings, waste), or produce direct-shippable product.

4. Auxiliary System Integration

Auxiliary systems of TDS^® include compress-air supply, dust management, power distribution, and centralized control. These systems maintain a clean working condition, reliable power, and highly automated operation, ensuring a long-term stability and efficiency of TDS^® system.

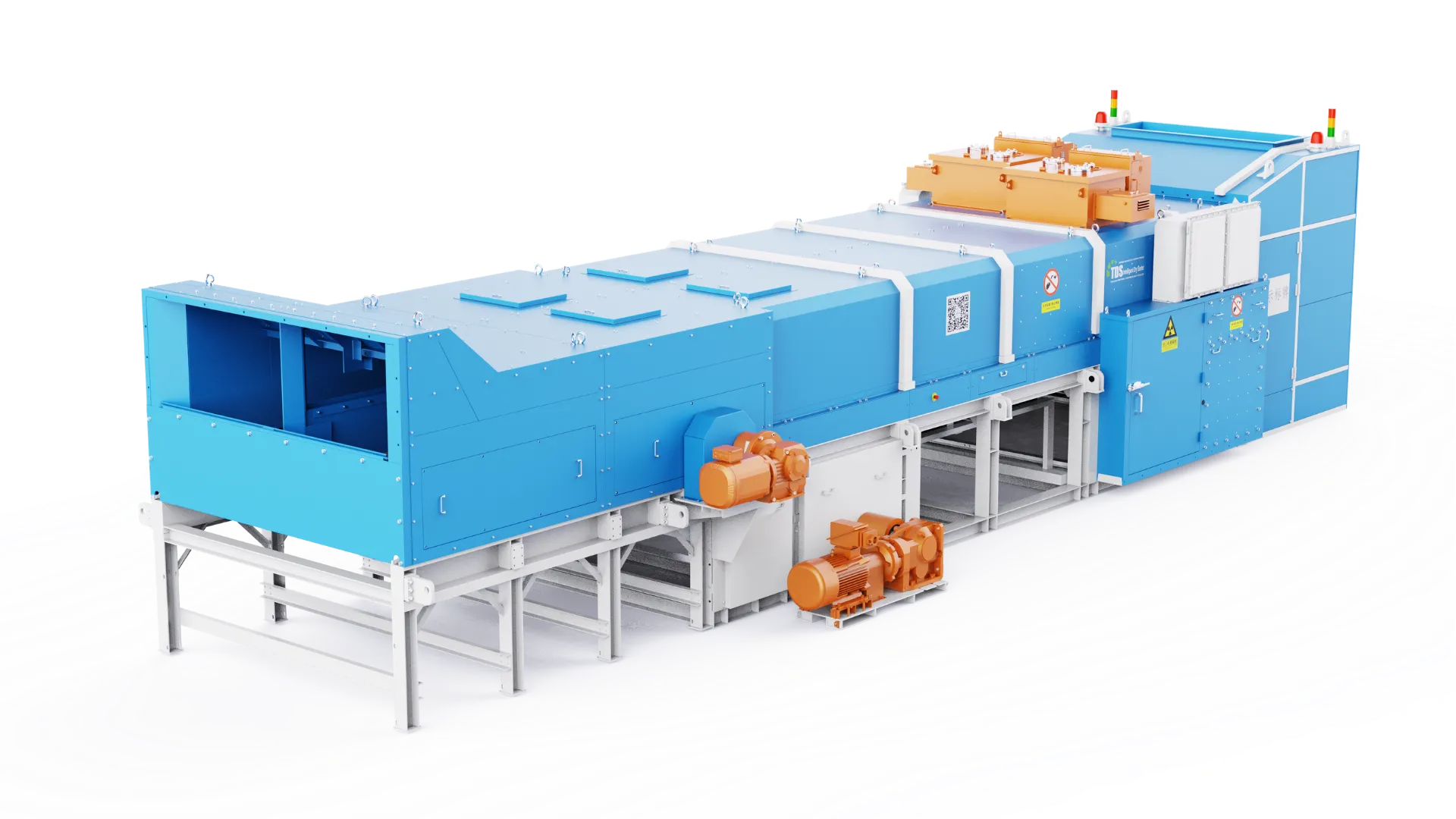

About H Series TDS^®

MeiTeng developed three-products and underground TDS^® models following the first standard TDS^® was successfully applied in 2016. Through years of technology iteration, MeiTeng has recently announced H-type TDS^®. MeiTeng R&D team gave a comprehensive upgrade for H-type TDS^® in sorting accuracy, processing capacity, feed particle size and equipment structure, making a new benchmark in the field of intelligent dry sorting.

Applications

MeiTeng’s TDS^® intelligent dry sorting system offers a versatile solution for modern coal preparation, addressing multiple application needs with efficiency and sustainability:

Coking Coal Sorting

Ideal for mines with high reject content and high transportation costs, or coking coal preparation plants where slime issue increase washing costs. TDS® is able to de-stone efficiently, improving feed quality of wet processing system while significantly lowering downstream processing burdens. De-stoning on the mine site can reduce waste from the source, cut transportation costs, and minimize downstream processing capacity.

Show More
Thermal Coal Sorting

Well-suited for new coal preparation plants. TDS® is an ideal replacement of conventional washing systems, or an integration with existing facilities to share processing loads and expand overall capacity. TDS® delivers consistent, high-efficiency sorting with reduced operating costs.

Show More
Dirty Coal Recovery

Applicable to scenarios that conventional dense-medium plants cannot process—such as easy degradation low rank bituminite and lignite, discarded dirty coal, or carbonaceous mud stone recovery. TDS® enables recovery of resources from the waste.

Show More

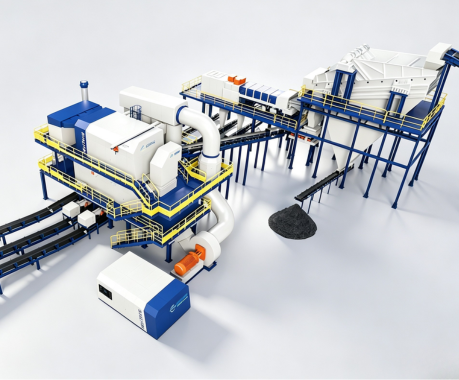

Mobile Dry Sorting Systems

Modularized units consist of a diesel power generator, screen & crusher, dry sorter & compressed air supply system, belt conveyor, and power & control system.

Designed for operations requiring frequent scene changes , these systems can serve on multiple mines with flexible deployment.

Show More
Extreme Environments

Proven adaptability under harsh and unique conditions: from severe cold regions to water-scarce deserts; from high-altitude plateaus to underground mines; from high-temperature tropics to humid rainforests， TDS® maintains stable and reliable performance where traditional methods would fail.

Show More

MeiTeng TDS^® Advantages

High Sorting Accuracy

Significantly higher accuracy compared with traditional air and other dry processing, It can completely replace conventional wet processing technologies such as jigging, movable screen jigging, dense-media vessels, dense-media drums and drewboys.
Data and Algorithms Cover All Coal Types

With more than a decade of application experience, the TDS^® data and algorithms have evolved to the fifth generation, enabling TDS^® to cover all coal types and a wide range of typical operating conditions.
Low Operating & Maintenance Cost

OPEX is lowered by a simplified layout, a reduced quantity of machines, and an easier maintenance.
Low Energy Consumption

Dry process with a significantly simplized system configration can dramaticly reduce power usage compared with the traditional wet process technology.
High System Stability

Reliable design ensures a long-term, consistent performance and high availability.
Compact Footprint

A smaller footprint compared to traditional wet preparation systems.
Efficiency Improvement

Boosts clean coal yield, minimun coal loss to the waste and enhances overall plant productivity.
AI-Powered Control

Advanced recognition and big-data analytics deliver stable, reliable and accurate results
Flexible & Versatile Application Scenarios

Underground Sorting: Coal face de-stoning can keep the waste underground , improving ROM coal quality at the source.

Mobile & Semi-Mobile Applications: Flexible deployment at in-pit, ports, coal yard, bulk loading station or other locations.

TDS^® Model & Specification

Series	Category	Feeding Size (mm)	Model	Nominal Capacity (t/h)
Standard Series	Large Lump	300-50	TDS(IXS160BP500)-12-300	120
			TDS(IXS160BP500)-16-300	160
			TDS(IXS160BP500)-20-300	200
			TDS(IXS160BP500)-24-300	240
			TDS(IXS160BP500)-32-300	320
			TDS(IXS160BP500)-40-300	400
	Medium Lump	100-25	TDS(IXS160BP500)-12-100	66
			TDS(IXS160BP500)-16-100	90
			TDS(IXS160BP500)-20-100	114
			TDS(IXS200BP500)-24-100	138
			TDS(IXS160BP500)-32-100	180
			TDS(IXS160BP500)-40-100	230
	Small Lump	40-10	TDS(IXS160BP500)-12-40	27.5
			TDS(IXS160BP500)-16-40	37.5
			TDS(IXS160BP500)-20-40	47.5
			TDS(IXS200BP500)-24-40	57.5
			TDS(IXS160BP500)-32-40	75
			TDS(IXS160BP500)-40-40	95
H Series	Large Lump	300-50	TDS(IXS160BP500)-H200-300	200
			TDS(IXS160BP500)-H320-300	320
			TDS(IXS160BP500)-H400-300	400
	Medium Lump	100-25	TDS(IXS160BP500)-H100-100	110
			TDS(IXS160BP500)-H135-100	135
			TDS(IXS160BP500)-H170-100	170
	Small Lump	10-50	TDS(IXS160BP500)-H040-50	40
			TDS(IXS160BP500)-H055-50	55
			TDS(IXS160BP500)-H070-50	70

Note：

1. This table is only applicable to the preliminary selection of TDS^® equipment.

2. The actual processing capacity is related to the reject content and particle size distribution of feeding .

3. The actual processing capacity for specific users needs to be determined by the manufacturer.

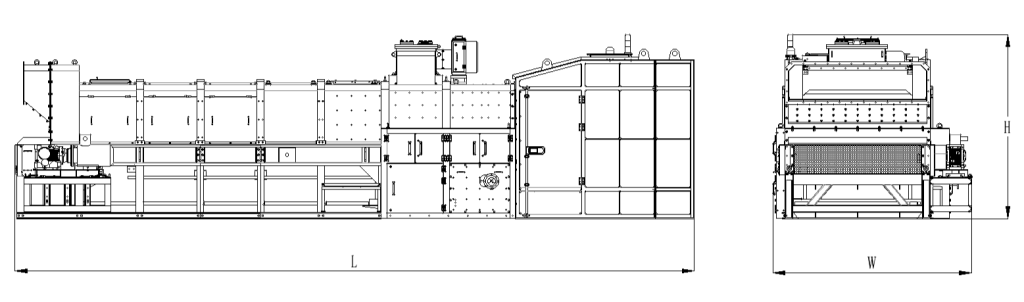

Overall Dimensions & Weight
Serial	Model	Length （mm）	Width （mm）	Height （mm）	Weight （t）
Standard Series	TDS12	10,620	2,660	3,050	12.3
	TDS16	10,620	3,060	3,050	13.4
	TDS20	10,620	3,440	3,050	14.5
	TDS24	10,620	3,880	3,050	15.6

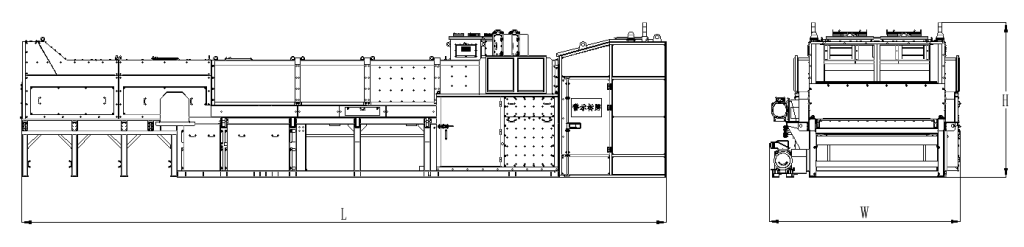

Overall Dimensions & Weight
Serial	Model	Length （mm）	Width （mm）	Height （mm）	Weight （t）
H Serires	TDS12-H	13,900	2,920	3,340	20.6
	TDS16-H	13,900	3,320	3,340	23.7
	TDS20-H	13,900	3,720	3,340	26.8
	TDS24-H	13,900	4,120	3,340	30.8

Note：All dimensions and weights are provided for reference only. Final data is subject to the actual product supplied.

Why MeiTeng TDS^® ?

High Sorting Accuracy and Large Processing Capacity

After 10 years of practical application and technological upgrading, the sorting accuracy of TDS® can reach that the misplace rate of coal in waste product ≤3.0%, the misplace rate of waste in clean product ≤3.0%, and the waste discharge rate ≥90%. MeiTeng TDS® provide the exordinary guarantee among the similar equipment.

The maximum processing capacity of a single TDS® unit can reach 400 t/h.

Reliable and Proven System

Trusted Hardware ： All key components are carefully selected and tested under harsh operating conditions to guarantee long-term reliability. Depending on customer needs, the system incorporates world-renowned brands for X-ray source generating device, solenoid valves, motors & gearbox, bearings, inverters and electrical control components.

Proven Software ：Our intelligent sorting algorithms have been refined over more than a decade, validated by data models built on 520+ field applications.

Smart Valve Design ： Wear parts such as solenoid valves are modular and easy to replace. A single valve failure does not interrupt continuous operation.

Certified to Leading International Quality Standards：The complete equipment has obtained CE, EAC, GOST and MA certifications, and can also be customized to meet specific requirements of different countries and users.

Preventive Maintenance: Scientifically optimized maintenance intervals are derived from extensive field operating experience. Real-time condition monitoring encompasses operating hours, loading rate, reject ratio, air pressure, and X‑ray source temperature. Additionally, an integrated early fault detection function minimizes the risk of unexpected machine shutdown.

Fast Remote Support ：In network‑accessible and authorized locations, MeiTeng’s 7/24 remote service provides expert troubleshooting and step‑by‑step video guidance, minimizing downtime and ensuring a swift return to operation.

Global Reliability：Trusted performance in the harshest conditions, Successfully overcame the challenges of +4000 m high-altitude, +40℃ high temperature, -35℃ chilliness and tropical high salinity and high humidity circumstances.

Driven by Innovation

MeiTeng invests significantly in R&D each year, resulting in a strong patent portfolio and ongoing technological advancement. All TDS® innovations are safeguarded by authorized international patents, invention patents, utility model patents, and software copyrights, with full intellectual property rights owned by MeiTeng.

Radiological Safety

MeiTeng is licensed with the “Radiation Safety Permit” from Chinese authorities, and all TDS® models are certified with the “Exemption Certificate for Radioactive Isotopes and Radiation Devices” in China. Strict factory inspections guarantee that ambient radiation levels around the machine are well below the prescribed occupational exposure thresholds.

Customized Engineering

With rich design expertise and strong R&D capabilities, MeiTeng provides tailored engineering and product solutions to meet specific project requirements.

Market Leader

As of December 31, 2025, MeiTeng has deployed more than 520 units in the global mining industry — ranked No.1 in China coal industry , with applications spanning all coal types and operating conditions. Successfully applied in leading coal enterprises and international projects.
