Crusher

How It Works

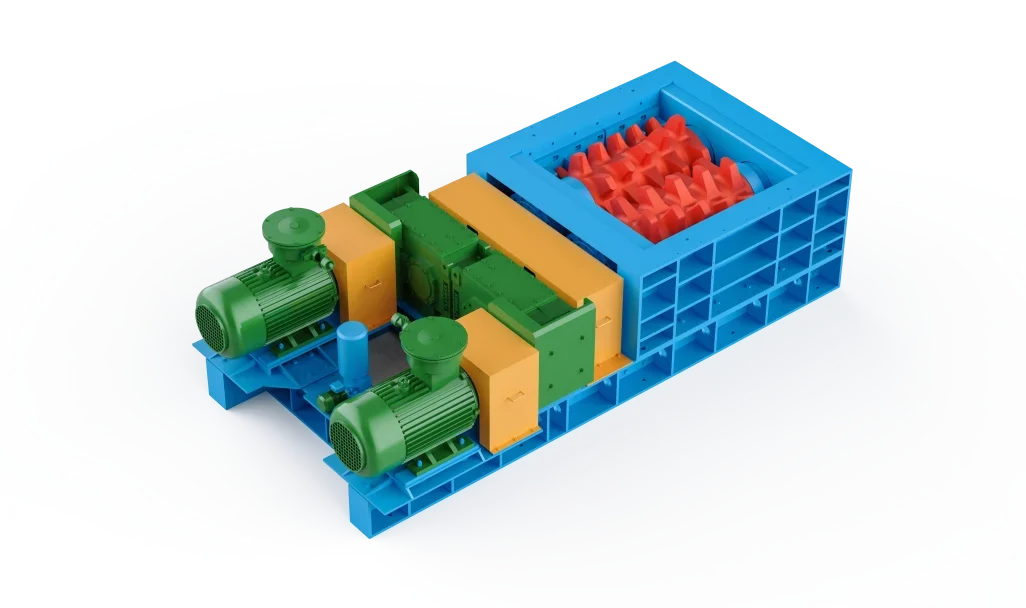

Heavy-duty Double-roll Crusher

The crusher adopts both shearing and tensile crushing principles, with double motors driving the rollers slowly through a hard-tooth-surface gear reducer, ensuring stable operation, low noise, and minimal over-crushing. The roller gap can be adjusted manually or electrically via a hydraulic system, and a check-back device keeps the gap constant for uniform discharge granularity. Controlled by PLC, the crusher enables fully automated crushing, feeding, and discharging processes. Its modular design allows reducers and gear plates to be swapped between rollers, improving equipment compatibility, while the centralized lubrication system with positive-pressure grease sealing reduces labor intensity and enhances bearing reliability.

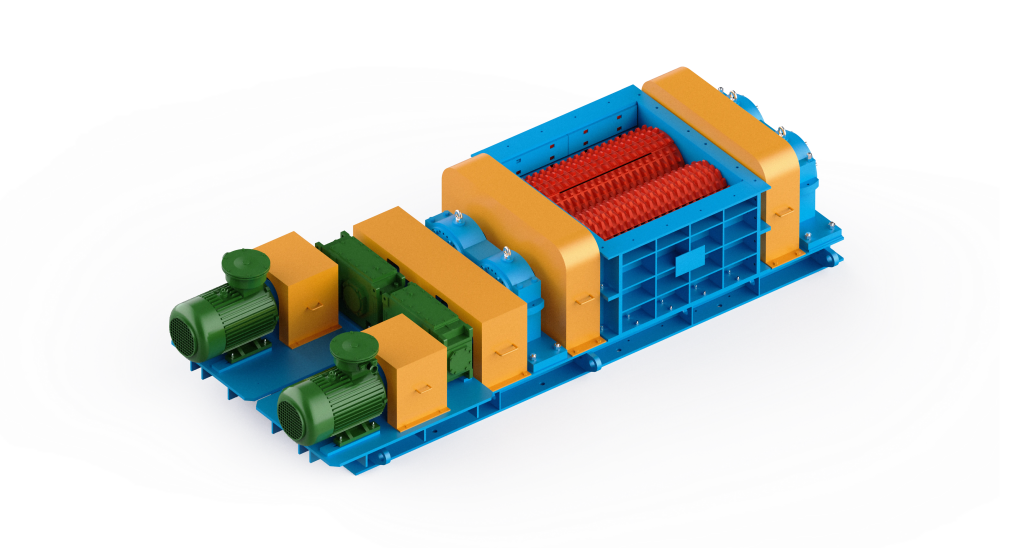

Energy-Efficient Double-roll Crusher

Based on the principles of momentum conservation and mechanical energy conversion,our crusher is equipped with a flywheel energy storage system that stores and releases kinetic energy.This increases the rotational inertia of the toothed rollers, reducing operating current.The technology is particularly effective for crushing raw coal with uneven particle sizes and variable properties, ensuring stable and energy-efficient operation.

Applications

Heavy-duty Double-roll Crusher

This series of crusher is mainly used for crushing raw coal in coal mine or coal preparation plant and other fragile materials of similar hardness in other industries.

Energy-Efficient Double-roll Crusher

Our crusher is suitable for raw coal and gangue in mines or coal preparation plants and also applicable to other industries for processing brittle materials of similar hardness.

Advantages

Heavy-duty Double-roll Crusher

– High-Efficiency Crushing：Specially designed teeth with high shear force ensure uniform size and minimal over‑crushing; wear‑resistant materials extend service life.

– Non-block design: Handles dry, wet, and viscous materials without clogging.

– Double overload protection: Electric and torque-limited fluid coupling ensures safety and reliability.

– Stable operation: Roller gap consistency maintains uniform product size.

– Low maintenance & cost-effective: Modular design and exchangeable components reduce maintenance time and cost.

– Top ten coal-crushing equipment brands in China, proven across a wide range of real-world applications

– Engineered to perform reliably in harsh working conditions, backed by attentive service and exceptional value for money

– Long service life: Advanced gear tooth profile and wear-resistant materials extend durability.
Energy-Efficient Double-roll Crusher

– Equipped with an automatic energy storage and release system, the crusher balances load and reduces energy consumption. Under similar operating conditions, our crusher with the flywheel energy storage device can save up to 30% energy.

– A flagship innovative product from Meiteng, engineered to overcome the high energy consumption and heavy wear commonly seen in traditional crusher

Model & Specification

Heavy-duty Double-roll Crusher

Model	Roller		Maximum Feeding Size (mm)	Discharging Size (mm)	Crushing Capacity (t/h)	Motor Power (kW)
Model	Diameter （mm)	Length (mm)	Maximum Feeding Size (mm)	Discharging Size (mm)	Crushing Capacity (t/h)	Motor Power (kW)
2PGCQ-400×500	400	500	300	50	50	2×22
				80	85
				150	160
2PGCQ-400×750	400	750	300	50	80	2×22
				80	130	2×22
				150	240	2×30
2PGCQ-400×1000	400	1000	300	50	120	2×37
				80	190	2×37
				150	360	2×45
2PGCQ-500×1200	500	1200	300	50	160	2×37
			300	80	250	2×55
			600	150	400	2×55
2PGCQ-500×1500	500	1500	300	50	200	2×37
			300	80	320	2×55
			600	150	500	2×75
22PGCQ-500×2000	500	2000	300	50	250	2×55
			300	80	400	2×55
			600	150	650	2×90
2PGCQ-800×1000	800	1000	350	50	170	2×37
			350	80	280	2×55
			800	150	400	2×75
2PGCQ-800×1500	800	1500	350	50	250	2×55
			350	80	400	2×75
			800	150	600	2×90
2PGCQ-800×2000	800	2000	350	50	350	2×75
			350	80	570	2×90
			800	150	800	2×110
2PLF50/150	500	1500	300	50	200	2×55
2PLF55/200	550	2000	300	50	250	2×75
2PLF65/300	650	2000	300	50	450	2×110
2PLF80/200	800	2000	400	50	350	2×110
2PLF90/120	900	1200	800	300	400	2×132
2PLF90/150	900	1500	800	300	600	2×160
2PLF90/200	900	1500	800	300	800	2×200
2PLF90/250	900	2000	800	300	1000	2×200
2PLF120/150	1200	2500	1000	300	1000	2×200
2PLF120/200	1200	3000	1000	300	2000	2×200
2PLF120/250	1200	2000	1000	300	2500	2×250
2PLF120/300	1200	4000	1000	300	3000	2×315
2PLF140/280	1400	3000	1500	300	5000	2×560
2PLF140/360	1400	4000	1500	300	8000	2×630

Note：All dimensions and data are provided for reference only.

Energy-Efficient Double-roll Crusher

Model	Roller		Maximum Feed Size （mm）	Discharge Size （mm）	Crushing Capacity （t/h)	Motor Power（kW）
Model	Diameter（mm）	Length（mm）	Maximum Feed Size （mm）	Discharge Size （mm）	Crushing Capacity （t/h)	Motor Power（kW）
2PLFL-800×1000	800	1000	300	50	200	2×37
2PLFL-800×1500	800	1500	300	50	300	2×55
2PLFL-800×2000	800	2000	300	50	400	2×55
2PLFL-800×2500	800	2500	300	50	500	2×75
2PLFL-800×3000	800	3000	300	50	600	2×90

Note：All dimensions and data are provided for reference only.
